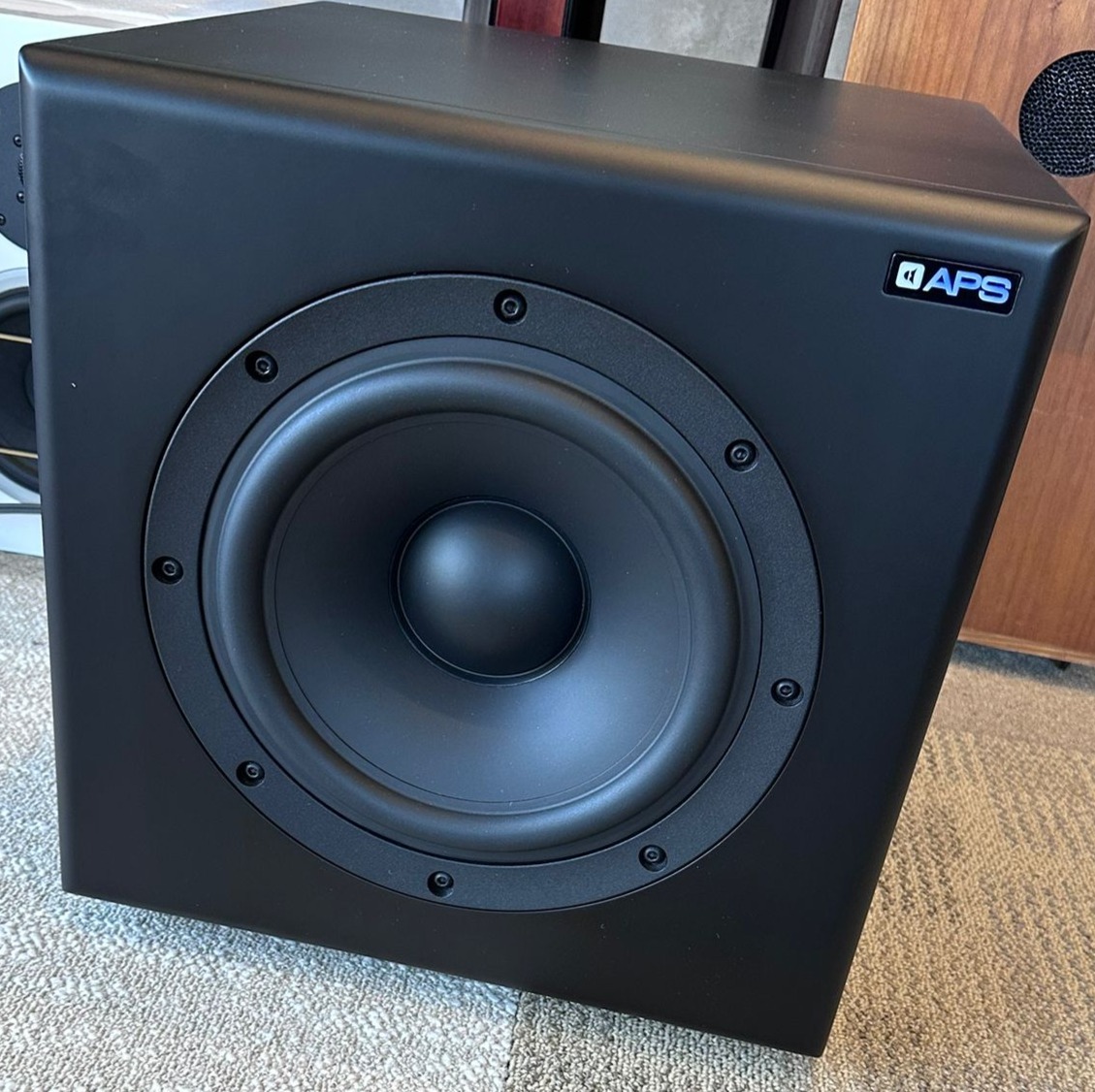

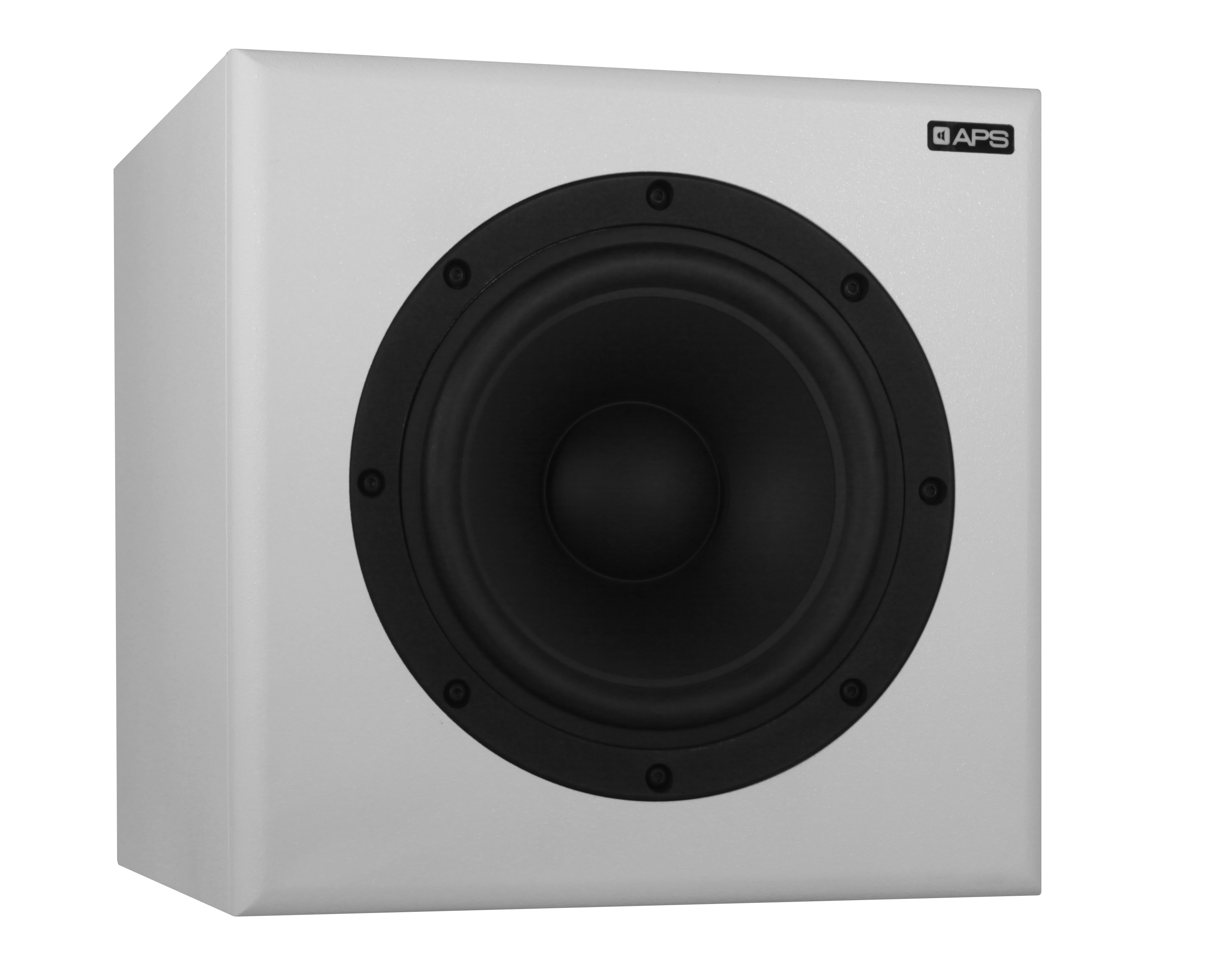

Sub10 Subwoofer 300W



SUB 10 is a professional subwoofer, designed to give the sound engineer the best possible control over the low end of audio spectrum, complementing any near or midfield monitoring system.

Despite its unassuming size, it offers precise reproduction of low frequencies. By using an exceptional woofer designed by the best engineers, coupled with a high-end class D amplifier and our know-how, we managed to create a subwoofer which meets the highest sonic requirements.

  has reinitiated the wonderful active loudspeakers designed and made by APS in Poland.  Order/inquire per Email / Contact

Order No./Code Type Price in €/CHF Picture


GSS10B-us
GSS10B-uk
GSS10B-eu



Sub10 by

  • -one-way active class D Subwoofer
  • -11 1/3" Bass Driver (29cm)
  • -Power amplifier 300W RMS 6 Ohm
  • -113.5 dBSPL peak/pair
  • SPL max in free field 1 meter:
  • RMS 105.5 dB
  • -Free field Freq. response
  • +/- 2.5 dB = 19Hz-90Hz
  • Crossover Freq. 40-90Hz

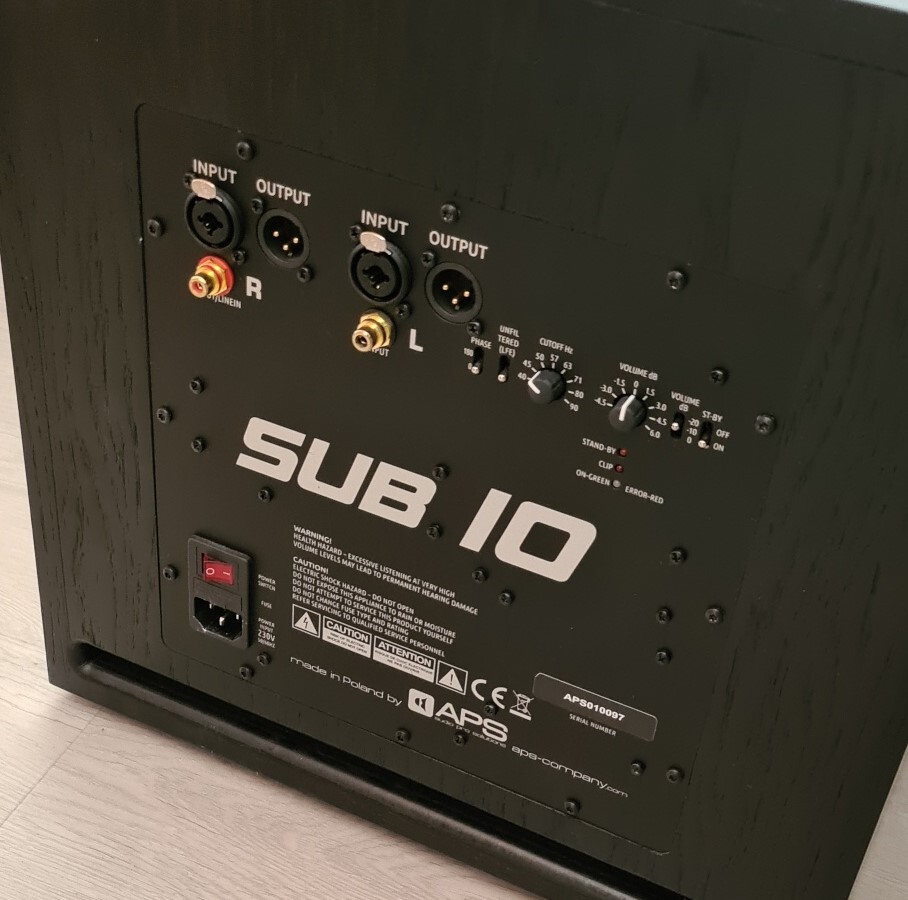

  • -XLR/TRS balanced input (2)
  • -RCA unbalanced input (2)
  • -RCA bypass switch on/off
  • -XLR Loop-tru XLR male (2)
  • -Voltage Selector 110/230VAC
  • -IEC Mains Power connector
  • -Power Cord as selected included
  •
  •  Datasheet

     Owners instruction manual


   		 Swiss Retail Price:
CHF 2'200.00 per piece in black finish
(Swiss Francs incl. 8.1% VAT)
Global retail price w/o VAT = Euro 2'200.00
per piece in black





Black finish

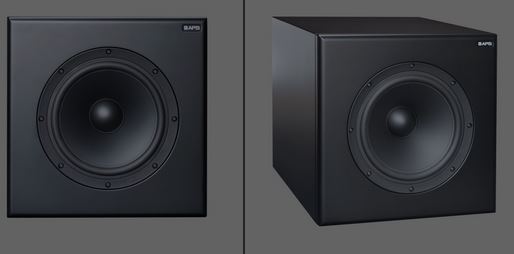

Gallery

Bilderplatzhalter Bilderplatzhalter Bilderplatzhalter
Bilderplatzhalter



Technical details:

  • Dimensions of one unit:
    39 cm x 39 cm x 10 cm (H.W.D)
    Shipping weight:  25.0 KG
  • Datasheet in detail:
  •  Datasheet

     Owners instruction manual
